JNode>arpower adapter

Use arpower with a JeeNode.

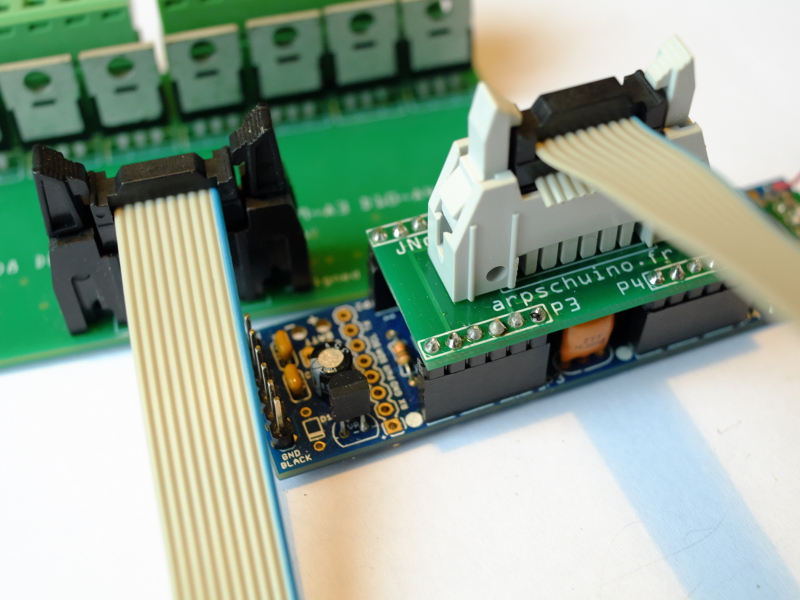

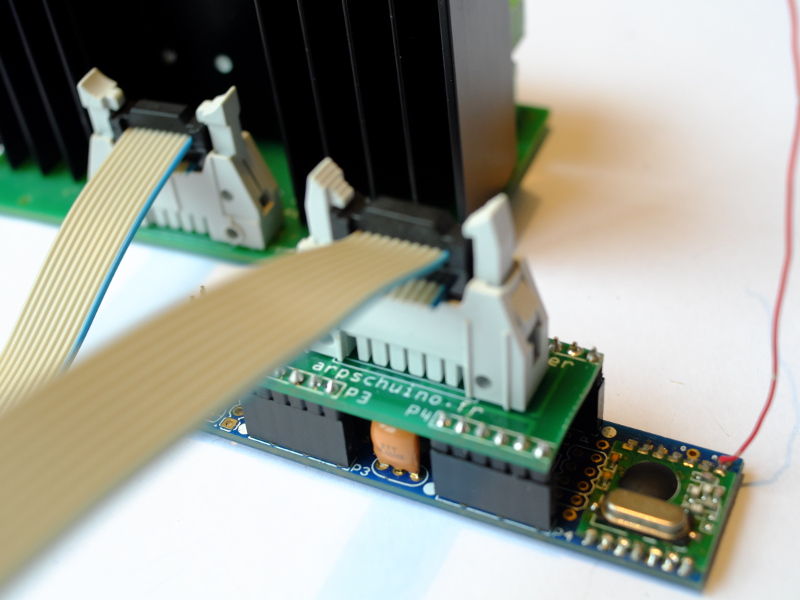

Some people use JeeNode for RF applications. With the JNode>arpower adapter you can now connect an arpower and benefit from its 8 power outputs up to 2 Amps and 8 amps with his heatsink kit .

Exemples sketchs are availables in download section, White Cat users can also use the examples provided in the "Resources" file of the software.

The JeeNode> arpower adapter can also be used as a breadboard adapter.

Specifications :

  • HE10 Connector with latch
  • Connecting to arpower by HE10 10 ribbon cables
  • arpower < -- >   JNode    < -- >   arduino

    1.       < -- >   P4 AIO   < -- >     17
    2.       < -- >   P4 DIO   < -- >     7
    3.       < -- >   P3 AIO   < -- >     16
    4.       < -- >   P3 DIO   < -- >     6
    5.       < -- >   P2 AIO   < -- >     15
    6.       < -- >   P2 DIO   < -- >     5
    7.       < -- >   P1 AIO   < -- >     14
    8.       < -- >   P1 DIO   < -- >     4

Price :

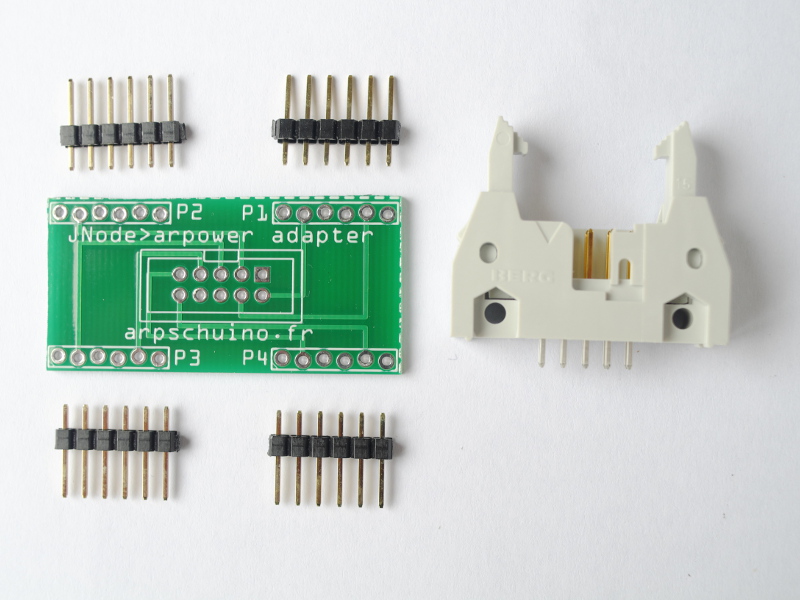

  • kit JNode>arpower : 5€
  • assembly : 2€


This website is not an online store. If you are interested in our boards, please contact us at arpschuino@gmx.fr
